Hybrid Solar Refrigeration Unit

Hybrid solar-powered refrigeration for cold storage, freezing and temperature-controlled applications.
Refrigeration

Cold Room Condensing Unit, Solar Direct Drive (SDD)

JUNDE's solar variable-frequency condensing units integrate cold-room refrigeration with photovoltaic direct-drive technology. The fundamental concept is straightforward and unconventional: The inverter compressor and fans are directly powered by DC power from the solar panels, without the need for an inverter stage to convert it to AC. By eliminating this conversion, the system is transformed into a solar direct-drive refrigeration system, as opposed to a conventional cool room that is affixed to a solar array. The range is designed to accommodate a variety of cold-room sizes, stored products, and temperature requirements, spanning from 3HP to 12HP. It is particularly advantageous in cold-chain logistics centers, agricultural-product storage, fruit and vegetable preservation rooms, food cold storage, and quick-freeze rooms. It is most advantageous when the solar resource is robust, and the grid supply and demand are unbalanced.

  • 3 HP Remote Condensing Unit, Solar-Powered Refrigeration Unit

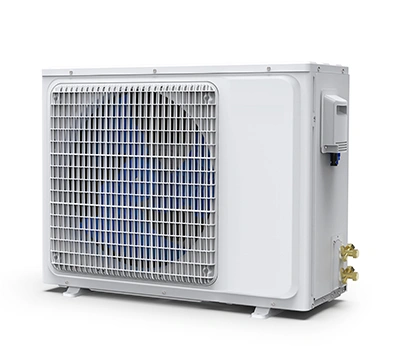

    3 HP Remote Condensing Unit

    Solar-Powered Refrigeration Unit

    • Cooling capacity: 4.2 (1.3–5.6) kW
    • Evaporating temperature range: −35 to 0 ℃
    • Cold-room temperature range: −20 to 10 ℃
    • Input power: 1.9 (0.6–2.8) kW
    • Suggested PV configuration: 3 panels
  • 5 HP Remote Condenser Unit, Solar Direct Cold Room Condenser

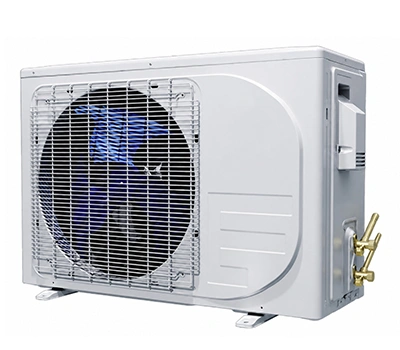

    5 HP Remote Condenser Unit

    Solar Direct Cold Room Condenser

    • Cooling capacity: 4.2 (1.3–5.6) kW
    • Evaporating temperature range: −35 to 0 ℃
    • Cold-room temperature range: −20 to 10 ℃
    • Input power: 1.9 (0.6–2.8) kW
    • Suggested PV configuration: 5 panels
  • 6 HP Hermetic Condensing Unit, Solar Direct Drive (SDD)

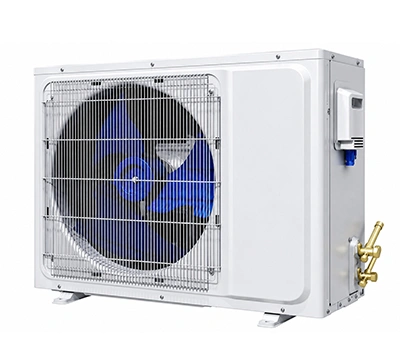

    6 HP Hermetic Condensing Unit

    Solar Direct Drive (SDD)

    • Cooling capacity: 8.6 (2.8–11.5) kW
    • Evaporating temperature range: −35 to 0 ℃
    • Cold-room temperature range: −20 to 10 ℃
    • Input power: 3.7 (1.4–5.7) kW
    • Suggested PV configuration: 8 panels
  • 8 HP Inverter Condensing Unit, Solar Cold Storage Condenser

    8 HP Inverter Condensing Unit

    Solar Cold Storage Condenser

    • Cooling capacity: 11.2 (3.2–15) kW
    • Evaporating temperature range: −35 to 0 ℃
    • Cold-room temperature range: −20 to 10 ℃
    • Input power: 4.8 (1.6–7.5) kW
    • Suggested PV configuration: 10 panels
  • 10 HP Refrigeration Condensing Unit, Solar Cold Storage Refrigeration Unit

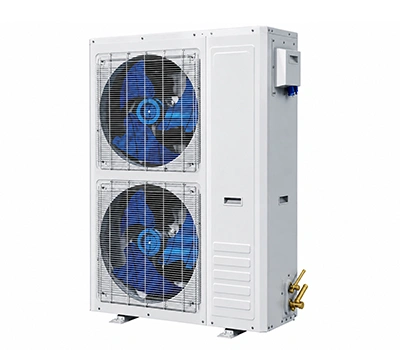

    10 HP Refrigeration Condensing Unit

    Solar Cold Storage Refrigeration Unit

    • Cooling capacity: 14.5 (4.8–19) kW
    • Evaporating temperature range: −35 to 0 ℃
    • Cold-room temperature range: −20 to 10 ℃
    • Input power: 6.2 (2.3–9.5) kW
    • Suggested PV configuration: 10 panels
  • 12 HP Remote Condensing Unit, Solar-Powered Cold Room Refrigeration Unit

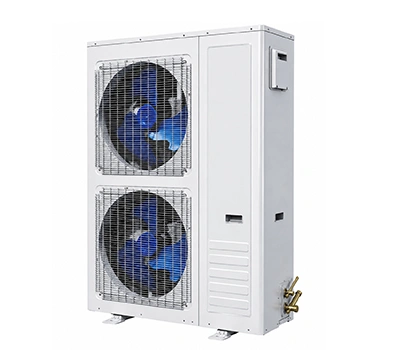

    12 HP Remote Condensing Unit

    Solar-Powered Cold Room Refrigeration Unit

    • Cooling capacity: 17.2 (5.6–23) kW
    • Evaporating temperature range: −35 to 0 ℃
    • Cold-room temperature range: −20 to 10 ℃
    • Input power: 7.4 (2.8–11.5) kW
    • Suggested PV configuration: 10 panels
About JUNDE
Focused on Solar HVAC, Heat Pump and Refrigeration Systems

Ningbo Junde Environmental Technology Co., Ltd. specializes in R&D, manufacturing, and worldwide sales of solar HVAC equipment, solar air conditioners, and PV direct-drive refrigeration equipment. Built on photovoltaic intelligent control technology, we provide low-carbon, efficient, and stable temperature-control solutions for residential, commercial, industrial, and off-grid settings. Our products span two series: solar air conditioners and PV direct-drive freezer and cooler units.
